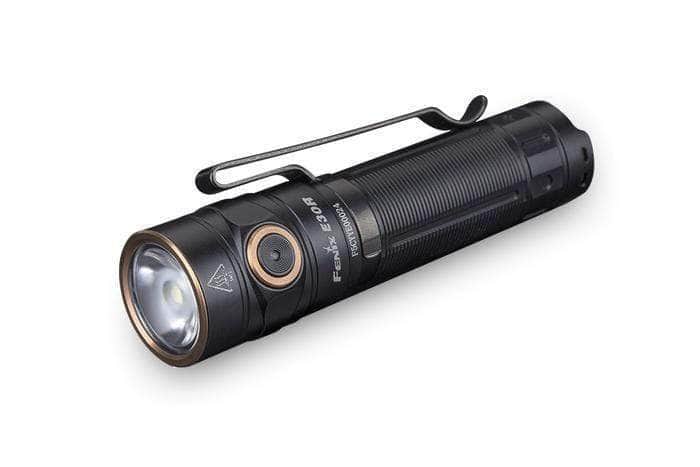

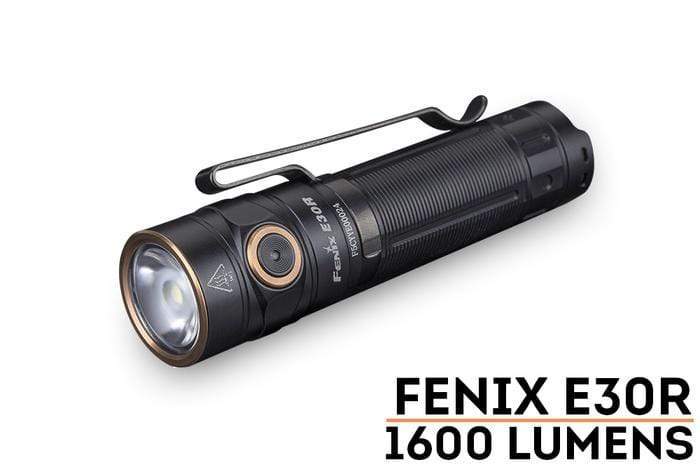

Fenix E30R Flashlight

The Fenix E30R is a multipurpose flashlight that may be used for simple tasks, repairs, or outdoor activities. This high-performance light produces 1600 lumens and has a beam distance of 203 meters. The E30R flashlight is very simple to use. The light can be operated with a single switch on the device. To turn the flashlight on or off, press and hold the button for half a second. You may also lock or unlock it by double-clicking the button. A single click is all you need for output switching. The flashlight weighs about 51 grams without the battery. It is also compact with dimensions of less than four inches, so you can fit it almost anywhere without any struggles. For everyday use, it can fit in your pocket. It also takes minimal space in the backpack during travel. For a constant light supply, you get two battery options. You can use the 18650 rechargeable Li-ion battery or two CR123A Lithium batteries when you have exhausted the battery charge. Charging is relatively easy with by use of a magnetic charging cable. It takes around 3 hours for the battery to be fully charged and you will also get warning reminders in case you need to charge or replace your batteries. The lockout feature is fantastic since you can prevent accidental activation that leads to unintended draining of the battery. The Fenix E30R is the perfect device for anyone who wants to do more with their light. It’s packed with features that make everyday life easier, more entertaining, and more productive. You won’t find another product like it on the market today.

Fenix E30R Features

Max 1600 lumens and 203 meters beam distance.
Powered by one 18650 rechargeable Li-ion battery, two CR123A Lithium batteries can be used in emergencies.
3.90’’ Length x 0.85’’ Body diameter x 1.0’’ Head diameter (99 x 21.5 x 25.4 mm).
1.80 oz /51 grams (excluding battery).
Magnetic charging with included magnetic charging cable - 3 hours for fully charged.
Included one Fenix ARB-L18-3500 rechargeable Li-ion battery.
Multiple ways of lockout function to avoid accidental activation.
One switch control - easy and fast operation.
Intelligent overheat protection against high surface temperature.
Low voltage warning reminds when battery charging or replacement is needed.

Build

The E30R features a robust and long-lasting build. The E30R has a metal casing that is both lightweight and hardwearing. Unlike plastic flashlight casings, the anodized aluminum body makes it light yet durable. The solid grip provided by the aluminum body with knurling helps ensure easy use in wet conditions. The flashlight is impact-resistant to a height of 1 meter and waterproof, so you may use it underwater for up to 2 meters. IP68 certification guarantees that the light can withstand harsh conditions without the risk of damage. Even in extreme situations, this flashlight will keep its integrity and toughness.

Charging

Charging the flashlight is very easy. It uses magnetic charging technology to quickly charge the flashlight without needing to remove the battery or worry about damage to the light in rainy conditions. There is no exposed charging port to allow water into the E30R. The magnetic charging cable is provided within the purchase of the light. The magnetic charging cable is fast, and the flashlight is fully charged in 3 hours. It is also possible to use the flashlight while the light is charging. However, the total charging time will be extended. If the light has been stored for more than 4 months, it is advisable to recharge it before use as it has likely lost some power.

Note: it is advisable to only charge the recommended battery that comes with this flashlight to avoid battery explosion or any other danger. Do not try to charge CR123 Lithium batteries inside of this flashlight.

Operations

Turning the E30R On/off

Press and hold the switch for 0.5 seconds to turn on/off the light with the light unlocked.

E30R Output Selection

With the light switched on, single click the side switch to cycle through Eco→Low→Med→High→Turbo.

Use Strobe mode

With the light unlocked, press and hold the switch for 1.2 seconds to enter Strobe, single click once again to turn back to the previously used output level.

How to Lock and Unlock the Fenix E30R

Lock: With the light unlocked, press the side switch twice within 0.5 seconds. The light will blink twice on Eco to indicate locked status.
Unlock: With the light locked, press the side switch twice within 0.5 seconds. The light will be unlocked and activated on Eco.
In locked status, clicking or pressing the button will activate two one-second blinks on Eco to indicate locked status.

How to replace the battery

Unscrew the light head and insert the battery with the anode side (+) towards the light head, then screw the light head back on.

Battery Level Indication

With the light switched off, single click the switch to check the battery status. The battery level indicator will display the battery status for 3 seconds.

Green constant on: saturated (100% – 86%)
Green flashes: sufficient (85% – 51%)
Red constant on: poor (50% – 26%)
Red flashes: critical (25% – 1%)

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, the battery level indicator blinks red to remind you to recharge the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery level runs out.

Note: This only works with Fenix 18650 Li-ion battery.

Intelligent Downshift

Time-limited Downshift
The light will downshift to 900 lumens within 30 seconds when it has been used on Turbo for 1 minute.

Usage and Maintenance

If you are not going to use the flashlight for a long time, make sure to remove the battery. Removing the battery will avoid explosion or electrolyte leakage, which will damage the flashlight. If you are using a rechargeable battery, make sure that you charge it every four months. Avoid disassembling any parts of the flashlight as this can interfere with the warranty and also cause damage to the light. It is advisable to clean the battery contacts if they get dirty to prevent the light from flickering. Regular cleaning of the battery contacts will give you a clean beam and enhance the operations of the flashlight. To avoid accidental activation, you can remove the battery or use the lock function. It will help to improve the battery life.

Warnings

It is advisable to use the correct batteries for this flashlight. Fenix advises against using the wrong type of battery as some have been banned. The flashlight should be kept away from human or animal eyes. Shining the flashlight is likely to cause damage to the eyes. When the flashlight is not in use, make sure that you remove the battery. Removing the battery will avoid explosion, electrolyte leakage, or damage to the light and battery.

Impressive Features

Compact and portable – This flashlight is compact and portable. It is portable and lightweight, making it easy to carry around. The exterior body is made using a solid but lightweight aluminum material.

Powerful – You will love the power that this small flashlight has to offer. It has five power outputs, with the most powerful being 1600 lumens. However, you can select other options such as 30, 150, 350, and 800 lumens depending on your lighting needs. The flashlight can also illuminate up to 203m.

Easy to use – The flashlight comes with one switch control. It is easy to control all the functions of the flashlight from one switch. You can adjust the lighting and also lock the flashlight from the one switch control.

Multiple purposes – You can use this flashlight for different purposes. The flashlight can be used for daily use to perform various functions. You can also use it outdoors for fieldwork. If you want to do some repair work, this is the best flashlight to use since it is lightweight.

Used in harsh environments – It is possible to use the flashlight in different settings, including underwater. It is a waterproof flashlight, and you can use it underwater for up to 2m. This is an impact-proof light, so it can withstand impact up to 1m. It is also dustproof, and you can use it in cold environments.

Versatile powering – with this flashlight, you get different ways to power it. It comes with a rechargeable battery, but you can still get a lithium battery that you can use in emergency cases.

Battery reminders – The flashlight has warning reminders to remind you when to recharge or replace the battery.

Fast charging – It will charge in 3 hours unless you are using the flashlight while it is charging. Magnetic charging is effective and ensures fast charging.

Clean beam – With this flashlight, you get a powerful but also a clean beam. You can use it for activities that need a pure beam, such as doing repair works, and sensitive activities such as reading details on maps.

Summary

The Fenix LD30R light is designed for people that want the best of everything. It doesn’t matter what you need; this light has got you covered. The tactical-grade construction makes it tough enough to stand up to anything, while its brilliant camouflage finish gives it a distinctive look and will make bystanders think twice before messing with you. Use the flashlight on your bike rides or jog at night - not only can it illuminate dark spots on your route, but it also serves as an extra deterrent if someone tries to bother you. Without any adjustments required, attach the magnetic charging cable, and then the rechargeable battery will be ready to go in no time. Quickly cycle through five modes or strobe and get prepared to experience out-of-this-world lighting!
